48x87 A12 Arcade overlay wine red left inswing with fingerprint scanner

Category Groke > All-Inclusive
  • Code: YUSG00A12048087AAFFAAAAAAA0

A12 Arcade overlay 1219x2210 single left inswing RAL 3005 wine red 3005 satin float glazing 800 mm handle with lever lock, round rosette, and fingerprint scanner
This item price includes a 50% import surcharge



MSRP $13,770
IMAPP $13,770



Description

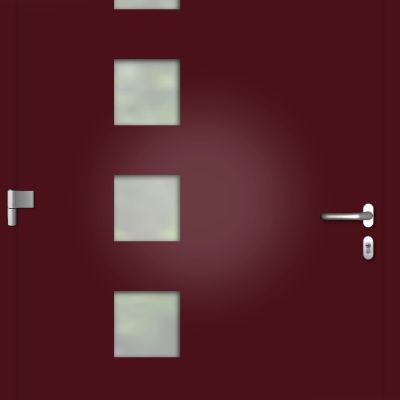

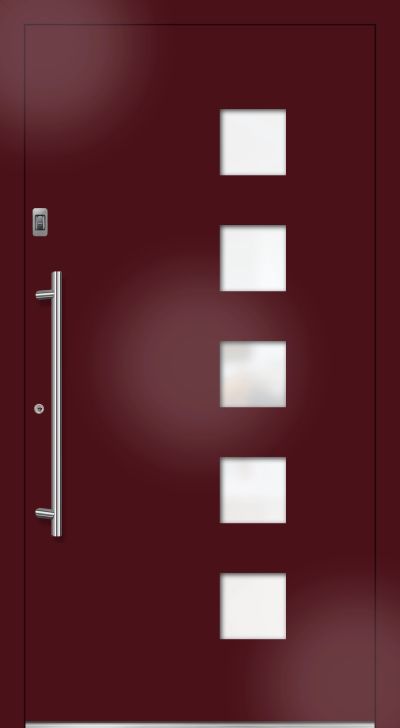

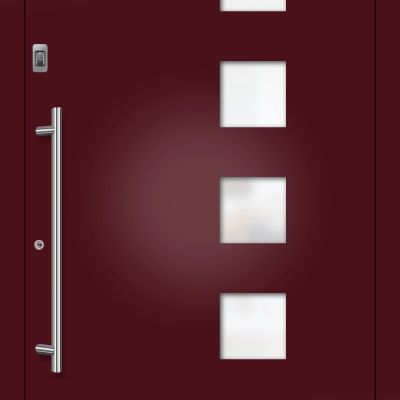

This A12 model door from Groke boasts a clean, contemporary look in a dark, soft wine red color, with satin glazing.  The dark colors highlight the brushed aluminum hardware and make it a great fit for any contemporary or even moderately modern home.  Not so obvious are the benchmark fit and finish of its construction, top-of-the-line security including a biometric fingerprint scanner for access, and best-in-class thermal efficiency.



Product Features

  • All aluminum and stainless steel construction
  • Modern minimalist design for contemporary homes
  • Maximum energy efficiency
  • Ultra-secure with convenient fingerprint access



Package Contents

  • Pre-assembled door mounted in the frame



Cost Breakdown

  • Base door and accessories: 81.8% of total cost
  • Electronic lock with ENRAsys+: 18.2% of total cost



Compatibility

  • Compatible with any wall thickness
    • Install frame flush to the outside, centered in the wall, or flush to the inside and return wall substrate to door frame
    • Installation position may affect door swing to full open



Product Specifications

  • Brand: Groke
  • Product series: All-Inclusive
  • Model: A12
  • Reference number: 895264768
  • Assembled item size: 48” wide x 87” high x 3.75” thick (1219 mm x 2210 mm x 95.25 mm)
    • Recommended rough opening size: 48.5” x 87.25”
    • Clear opening size if door can swing 180o: 42”x83”
  • Item weight:
  • Materials: aluminum, stainless steel, glass, insulation
  • Construction type: Arcade
    • Frame flush to door leaf
    • Overlay both sides
    • Single door
    • Swing: left inswing (hinged on the right  from outside looking in)
    • Surface: flush smooth
    • Internal construction: proprietary bolted-together system with no welds
    • Frame width: 3.125”
    • Door thickness: 3.75”
  • Threshold: type 2
    • Floor connection profile: no
    • Retractable seal: no
    • Threshold height: 1”
  • Colors
    • Exterior frame: RAL 3005 wine red powder-coat
    • Exterior door: RAL 3005 wine red powder-coat (to avoid deformation, not recommended for south-facing, unshaded exterior doors in climates with high solar radiation)
    • Interior frame: RAL 3005 wine red powder-coat
    • Interior door: RAL 3005 wine red powder-coat
    • Exterior handle: brushed stainless steel
    • Interior handle: brushed stainless steel
    • Hinges: silver anodized
    • Threshold: silver anodized
  • Exterior handle: 31.5”x1.18” (800 mm x 30 mm) round brushed stainless steel with angle mount
  • Inside handle: EV1 brushed stainless steel lever
  • Rosette: round exterior and oblong interior brushed stainless steel
  • Keys: 5 proprietary reversible non-duplicable keys included (duplicates may be requested with the factory serial number)
    • Replaceable key cylinder
  • Glazing: triple pane
    • Exterior pane: P4A
    • Middle pane: ornamental glass Ug 0.6 satin float finish
    • Interior pane: VSG
  • Thermal efficiency
    • Seal type: triple seal between door and frame with cold-welded corners at side and top
    • Double seal at threshold
    • Thermal break: 1” wide 360o  thermal break in door and frame
    • Door thickness: 3.75”
    • Ud value: 0.8 W/M2K (calculated at 2100 mm x 1100 mm)
  • Security and access
    • 3-point locking mechanism on strike side
    • 2 frame pins on hinge side
    • Type D electric lock
    • ENRAsys+ fingerprint scanner in stainless steel and internal receiver included for biometric access
    • Power supply for lock not included
  • Hinge type: standard adjustable in silver anodized
  • Peephole: none
  • Integrated automatic closer: none
  • Input voltage: 12V AC or 12-24V DC
  • Frequency: 50-60 Hz
  • Amperage draw: 1500 mA
  • Radio frequency: 922.5 MHz
  • Radio encryption: 128-bit
  • Radio code: rolling code
  • Radio classification: SOMloq2
  • Radio memory: 40 slots
  • Radio outputs: 1-channel
  • Wired inputs: 1 dry contact
  • Temperature range: -13o F to 149o F
  • IP rating receiver: 20



Shipping Information

  • Unit: crate
  • Unit size: 60”x99”x18”
  • Unit weight:
  • Shipping size single item: 60”x99”x18”
  • Shipping weight single item:
  • Items per pallet: 5
  • Pallet size: 48”x60”x99”
  • Pallet weight:
  • Country of origin: Germany
  • Delivery options
    • Pick up at SOMMER warehouse in Charlotte—no cost
    • Direct delivery by SOMMER—contact sales for cost
    • Crated LTL delivery—contact sales for cost
    • Drop shipped delivery from factory—contact sales for cost



Warranty

  • General warranty: 5 years
  • Accessories warranty: 2 years
  • Limitations: see terms and conditions



Product Safety

  • DIN EN ISO 50001: 2018
