A35 Arcade overlay 1524x2400 single right inswing with right sidelite RAL 9005 jet black 9005 matte glazing with stripes 300 mm handle with lever lock, round rosette, and SOMweb
This item price includes a 50% import surcharge

MSRP $19,000
IMAPP $19,000

Description

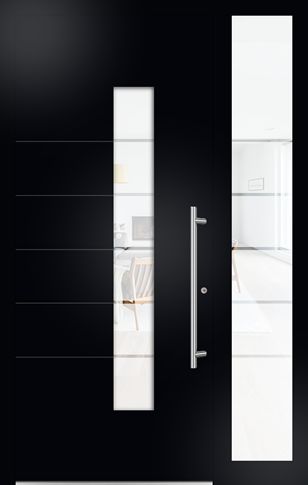

This A35 Arcade door in jet black from Groke highlights beautifully muted lines in both the frame and the glass side lite.  The modern look of this door is enhanced by its energy saving features: triple weather seals running the entire perimeter of the door, a wide thermal break running the full circumference of both the door and the frame, and triple pane laminated tempered glass.  For security and access, this door boasts a five-point locking mechanism with electronic access via the SOMweb smart phone app.

Product Features

• All aluminum and stainless steel construction
• Modern minimalist design for contemporary homes
• Maximum energy efficiency
• Ultra-secure with convenient smart phone access

Package Contents

• Pre-assembled door mounted in the frame
• Aluminum extrusions for side lite
• Glass for side lite (unassembled)

Cost Breakdown

• Base door and accessories: 59.3% of total cost
• Side lite: 23.2% of total cost
• Premium color: 5.5% of total cost
• Electronic lock with SOMweb: 12% of total cost

Compatibility

• Compatible with any wall thickness
  • Install frame flush to the outside, centered in the wall, or flush to the inside and return wall substrate to door frame
  • Installation position may affect door swing to full open

Product Specifications

• Brand: Groke
• Product series: All-Inclusive
• Model: A35
• Reference number: 793528320
• Assembled item size: 60” wide x 94.49” high x 3.75” thick (1524 mm x 2400 mm x 95.25 mm)
  • Recommended rough opening size: 60.5” x 94.75”
  • Inside frame clear opening size if door can swing 180^o: 37.3”x90.49”
• Item weight:
• Materials: aluminum, stainless steel, glass, insulation
• Construction type: Arcade
  • Frame flush to door leaf
  • Overlay both sides
  • Single door with right side lite (outside looking in)
  • Door width including frame: 43.3”
  • Side lite width including frame: 16.7”
  • Swing: right inswing (hinged on the left from outside looking in)
  • Surface: flush smooth with 5 milled 0.59” horizontal exterior grooves
  • Internal construction: proprietary bolted-together system with no welds
  • Frame width: 3.125”
  • Door thickness: 3.75”
• Threshold: type 2
  • Floor connection profile: no
  • Retractable seal: no
  • Threshold height: 1”
• Colors
  • Exterior frame: RAL 9005 jet black powder-coat
  • Exterior door: RAL 9005 jet black powder-coat (to avoid deformation, not recommended for south-facing, unshaded exterior doors in climates with high solar radiation)
  • Interior frame: RAL 9005 jet black powder-coat
  • Interior door: RAL 9005 jet black powder-coat
  • Exterior handle: brushed stainless steel
  • Interior handle: brushed stainless steel
  • Hinges: silver anodized
  • Threshold: silver anodized

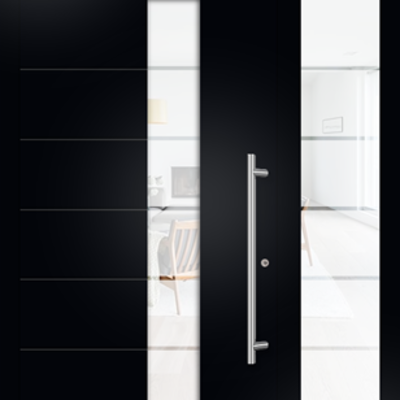

• Exterior handle: 31.5”x1.18” (800 mm x 30 mm) round brushed stainless steel with angle mount

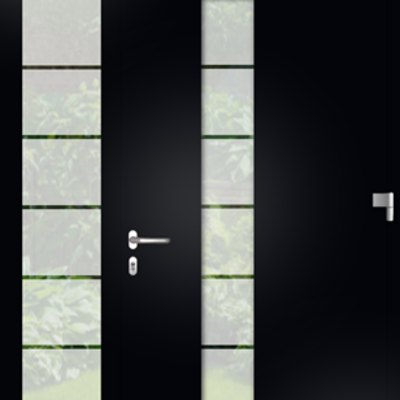

• Inside handle: EV1 brushed stainless steel lever
• Rosette: round exterior and oblong interior brushed stainless steel
• Keys: 5 proprietary reversible non-duplicable keys included (duplicates may be requested with the factory serial number)
  • Replaceable key cylinder
• Glazing: triple pane door and side lite
  • Exterior pane: P4A
  • Middle pane: ornamental glass Ug 0.6 matte finish with 5 horizontal clear lines 0.59”
  • Interior pane: VSG
• Thermal efficiency
  • Seal type: triple seal between door and frame with cold-welded corners at side and top
  • Double seal at threshold
  • Thermal break: 1” wide 360^o  thermal break in door and frame
  • Door thickness: 3.75”
  • Ud value: 0.8 W/M²K (calculated at 2100 mm x 1100 mm)
• Security and access
  • 3-point locking mechanism on strike side
  • 2 frame pins on hinge side
  • Type C electric lock
  • SOMweb module and internal receiver included for smart phone access
  • Power supply for lock not included
• Hinge type: standard adjustable in silver anodized
• Peephole: none
• Integrated automatic closer: none
• Input voltage: 12V AC or 12-24V DC
• Frequency: 50-60 Hz
• Amperage draw: 1500 mA
• Radio frequency: 922.5 MHz
• Radio encryption: 128-bit
• Radio code: rolling code
• Radio classification: SOMloq2
• Radio memory: 40 slots
• Radio outputs: 1-channel
• Wired inputs: 1 dry contact
• Temperature range: -13^o F to 149^o F
• IP rating receiver: 20

Shipping Information

• Unit: crate
• Unit size: 72”x108”x18”
• Unit weight:
• Shipping size single item: 72”x108”x18”
• Shipping weight single item:
• Items per pallet: 5
• Pallet size: 48”x72”x108”
• Pallet weight:
• Country of origin: Germany
• Delivery options
  • Pick up at SOMMER warehouse in Charlotte—no cost
  • Direct delivery by SOMMER—contact sales for cost
  • Crated LTL delivery—contact sales for cost
  • Drop shipped delivery from factory—contact sales for cost

Warranty

• General warranty: 5 years
• Accessories warranty: 2 years
• Limitations: see terms and conditions

Product Safety

• DIN EN ISO 50001: 2018
